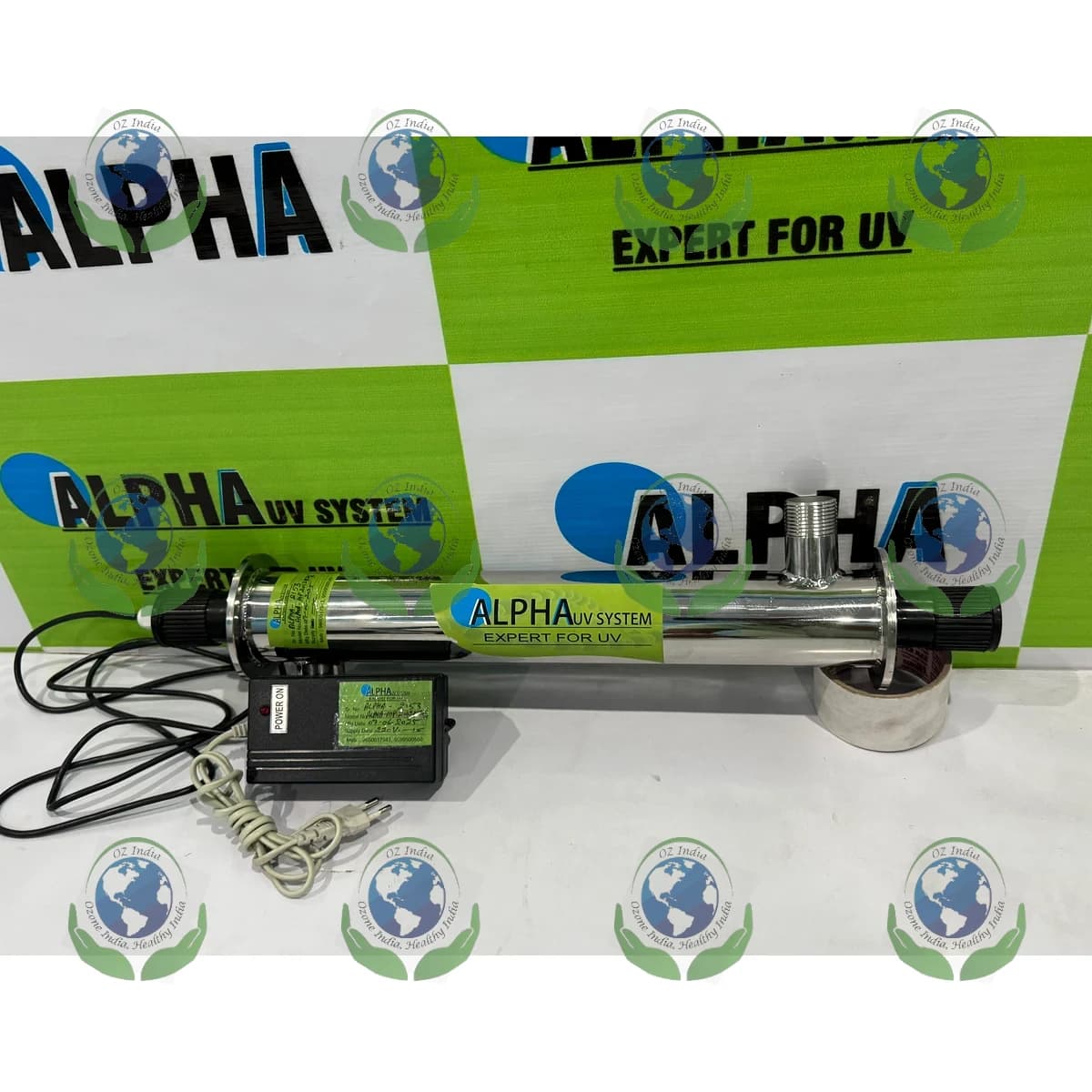

1 / 4UV Compact Series — 100 to 2000 LPH
Compact inline UV water disinfection — 100 to 2000 LPH — SS304 chamber, OEM and commercial ready
UV Compact Series 100–2000 LPH by Ozone India Technology, Greater Noida, UP. SS304L electropolished chambers, genuine fused silica quartz, low-pressure UV lamp. For RO plant OEMs, restaurants, schools, hospitals, commercial buildings. CE certified.
CE & ISO 9001:2015 certified manufacturer · Est. 2014 · 150,000+ installations · Greater Noida, India

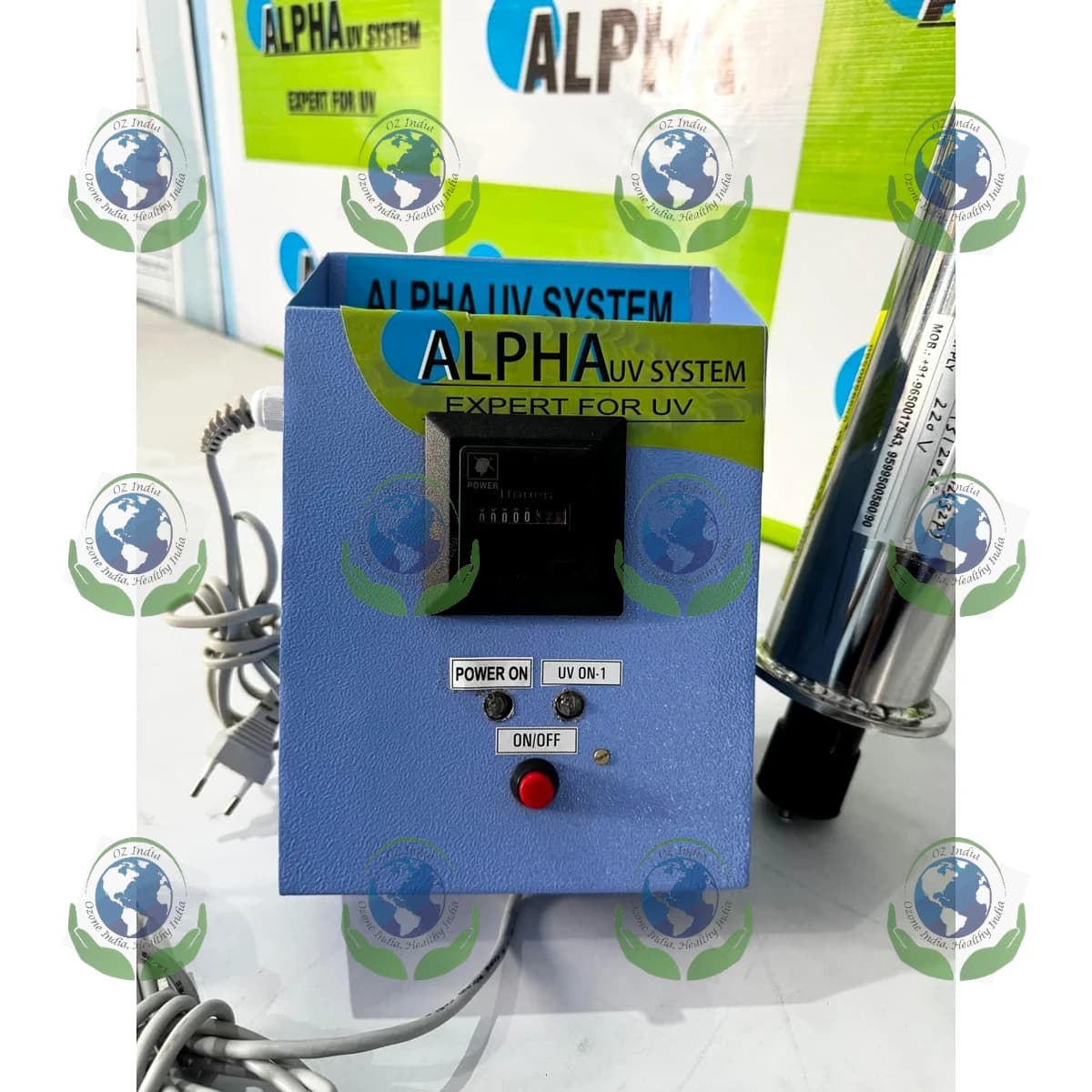

The OZ Compact UV Series is designed for commercial and OEM applications requiring reliable water disinfection at 100–2000 LPH. SS304L electropolished reactor body with genuine high-purity fused silica quartz sleeve ensures maximum UV-C transmission throughout lamp life. Supplied complete with digital controller, flow switch, and UV intensity indicator. Ideal for RO plant OEMs, restaurants, schools, small hospitals, and apartment complexes.
| Flow Rate | 100 LPH to 2000 LPH |
|---|---|
| UV Lamp | Low-pressure UV-C, 254 nm |
| UV Dose | ≥40 mJ/cm² at end-of-lamp-life |
| Chamber | SS304L electropolished |
| Quartz Sleeve | Genuine fused silica, >95% UV-C transmittance |
| Controller | Digital — lamp ON/OFF, hour meter, alarm |
| Power | 230 VAC, 50 Hz, <60W |
| Lamp Life | 9000 hours |
| Log Reduction | 4-log (99.99%) bacteria & virus |
| Certification | CE, ISO 9001:2015, NSF/ANSI 55 Class B |
- 100–2000 LPH — perfect for commercial RO systems and small institutions
- SS304L electropolished — superior biofilm and corrosion resistance
- Genuine fused silica quartz — better UV output vs local quartz
- Digital controller with lamp hour meter and replacement reminder
- NSF/ANSI 55 Class B certified — safe for drinking water
- BSP threaded — plug-and-play into existing pipework
- CE certified, Make in India
INDUSTRY APPLICATIONS
Where UV Compact Series is Used
Related Products
Frequently Asked Questions
Low-pressure mercury UV lamps are rated for 9,000–12,000 operating hours (approximately 1–1.5 years at continuous operation). UV output degrades by 10–15% per year — replace when the UV intensity monitor reads below 70% of the initial calibrated value, or at least every 18 months regardless of intensity reading.
BIS IS 10500:2012 requires E. coli to be not detectable in 100 mL of treated water. A UV dose of ≥25 mJ/cm² reliably achieves this. Ozone India Technology UV systems are designed to deliver ≥40 mJ/cm² at end-of-lamp-life, providing a safety margin for variable water quality conditions.
No. UV disinfection is a purely physical pathogen inactivation process — it does not remove any dissolved or suspended contaminants. Water must be pre-treated to <1 NTU turbidity before UV treatment. For complete water purification including TDS, hardness, and chemical removal, combine UV with RO and/or ozone treatment.
UV systems are sized for specific UVT values. Ozone India Technology systems are standard-rated at ≥85% UVT (typical drinking water after filtration). For low-UVT water (coloured groundwater, post-secondary treated sewage at 60–70% UVT), the system is sized with additional lamp power to compensate. Provide your water's UVT% when requesting a quotation.
Yes. All UV water treatment systems carry CE marking under EU Machinery Directive 2006/42/EC and are manufactured under ISO 9001:2015 QMS. CE documentation supports export to EU, GCC, and other markets requiring CE certification for imported water treatment equipment.
